Lugwise

Tap near each lug. See which one is off.

Lugwise listens to your drum through the iPhone microphone and shows the pitch at every tension rod, so you know which lug to turn and by how much.

No accountNo adsWorks offlineFree to tune
Download on the App StoreComing soon
Lugwise lug map: six lugs of a batter head with their pitch in hertz, lug 5 high in orange, lug 3 low in blue, and the instruction Lug 5 is high: loosen a little

Made for the floor, not for a lab

Hands free

Put the phone down 30 to 60 cm away. Tap a lug and Lugwise records it and moves to the next one in star order. Tap any lug on the ring to redo it.

One clear instruction

A big color block you can read from the throne: which lug is high or low, and which one to check next. Green when the head is even.

Numbers it can stand behind

No number when the tap is unclear: it says Tap again and why. It also listens to the ring after each tap and tells you when an uneven head beats.

Lug 5 is high: loosen a littleThen check lug 2 (opposite)
Lug 3 is low: tighten a littleThen check lug 6 (opposite)
All lugs are evenRound done. Switch to Reso or open the summary.

How to tap

  1. Lay the drum on a rug so the other head stays quiet. Snares off.
  2. Put your phone on the floor or a chair, 30 to 60 cm away.
  3. Tap lightly about an inch in from the rim, next to a lug.
  4. Turn the lug Lugwise names, a little at a time, then tap it again.

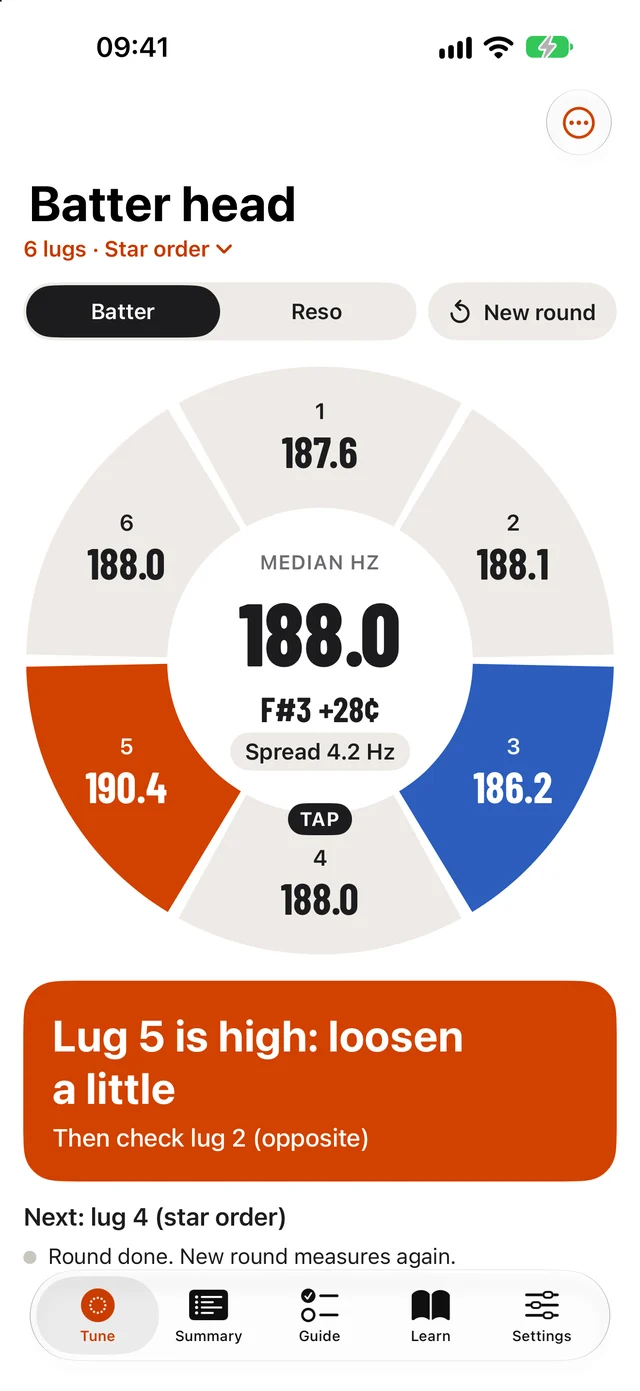

Lug map with six readings and the median 188.0 Hz
Lug map for each head

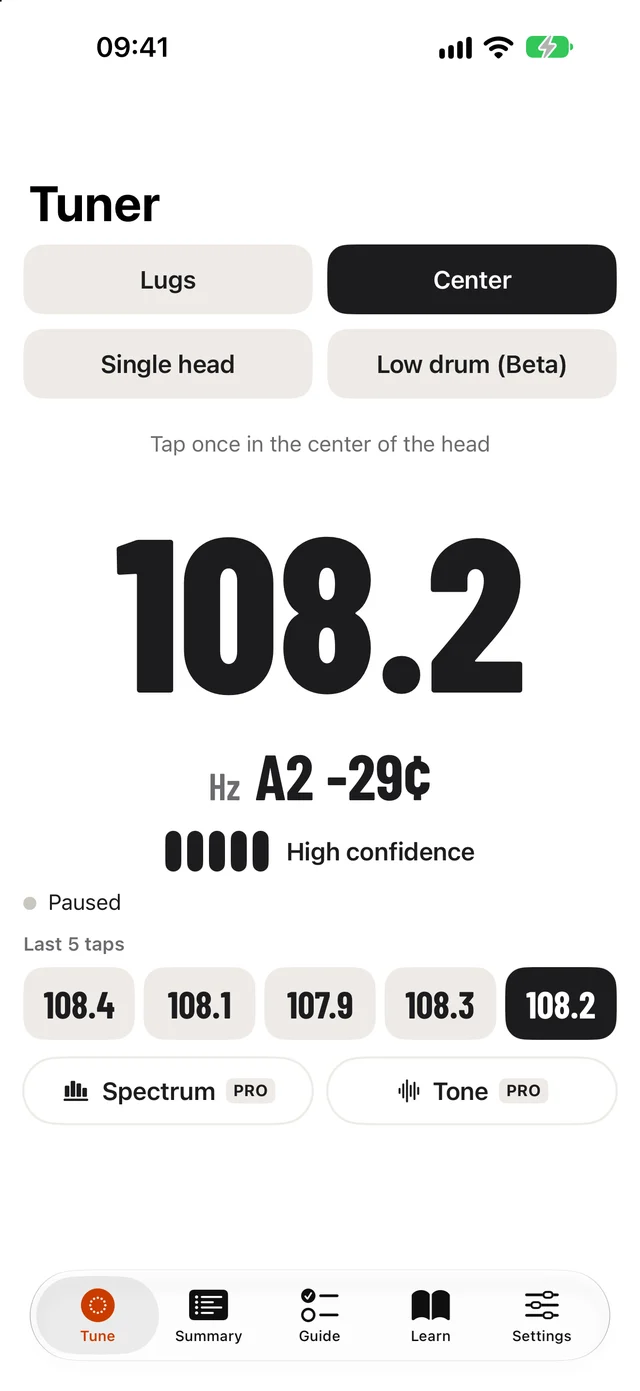

Center tap reading 108.2 Hz, note A2, high confidence, last five taps
One tap, one big number

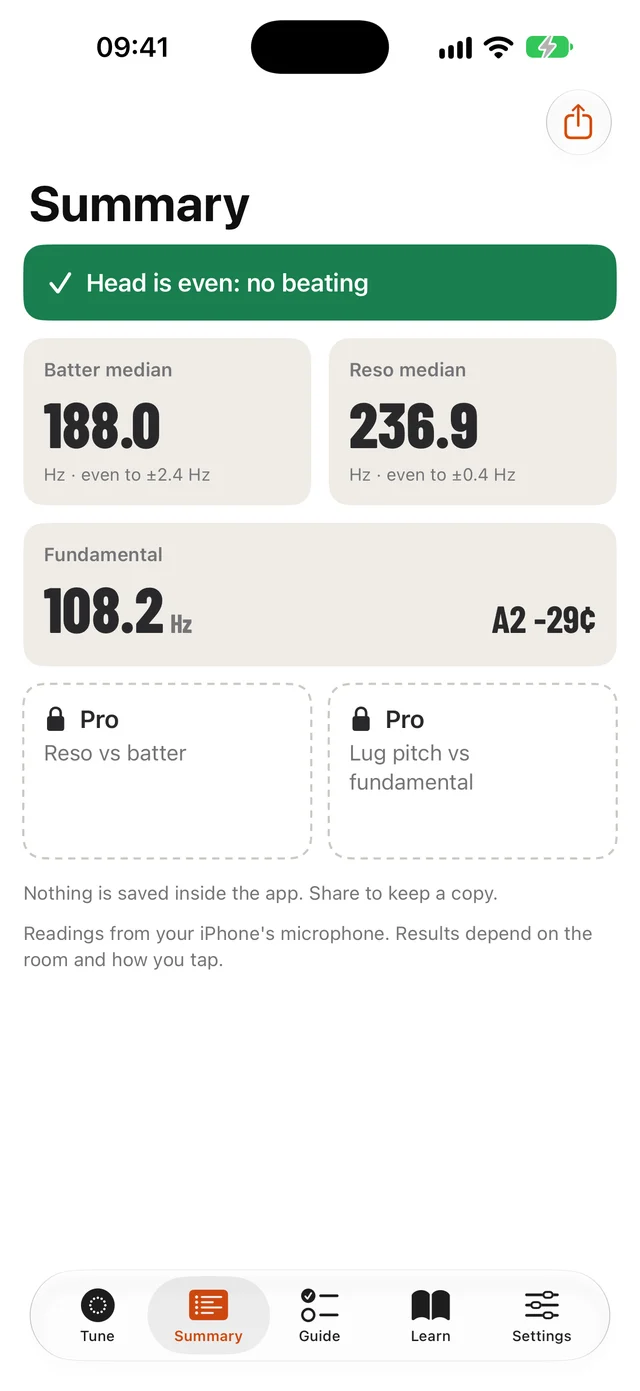

Summary with batter median 188.0 Hz, reso median 236.9 Hz and fundamental 108.2 Hz
Summary of this session

Free to tune. Pro once.

Free, forever

Lugs, Center, Single head and Low drum (beta) modes, the lug map for batter and reso, beating detection, the step-by-step guide, the articles, and sharing your readings as text or CSV. Measuring is never locked.

$6.99

Lugwise Pro, one-time purchase: ratios between your readings, spectrum view, tone generator, PDF tuning card. Family Sharing on.

Private by design

No account, no analytics, no ads. The sound is analyzed on your iPhone and never recorded or sent. Privacy policy.

Questions

Do I need an account?

No. There is no sign-in and no server. Everything runs on your iPhone, and it works in Airplane mode.

Is it free?

Tuning is free forever with no ads: every measuring mode, the lug map for both heads, beating detection, the guide and the articles. Lugwise Pro is a one-time purchase of $6.99 that adds ratios between your readings, a spectrum view, a tone generator and a PDF tuning card.

Does it tell me what pitch to tune to?

No. Lugwise measures and compares what you tap: lug against lug, top head against bottom head. Choosing the sound is up to you.

Why does it sometimes say Tap again?

Lugwise only shows a number when the tap gives a clear, steady pitch. Otherwise it says why, for example the pitch was still falling after a hard hit, or it sounded like an overtone.

Does it save my drums?

No. Readings stay on screen for the session. Use Share to keep them in Notes, Files or a message.

How accurate is it, and what we could not test: see the test results.
